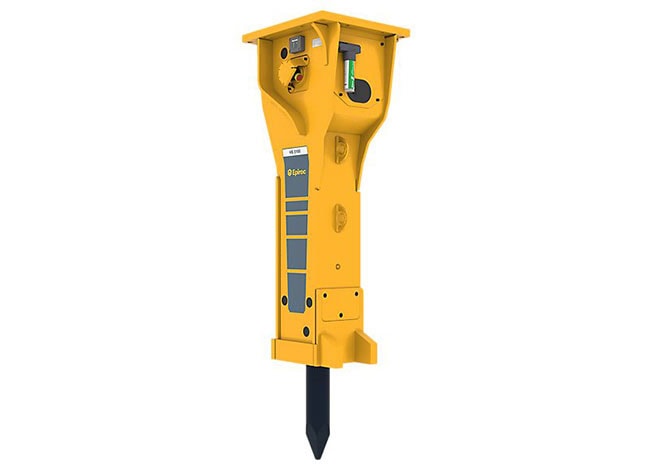

Hydraulic Hammer attachment designed for use with an excavator. Ideal for road construction, smaller trenching, demolition jobs, building renovations, and landscaping. A powerful and effective demolition tool. Available in various sizes.
Hydraulic Hammers - Dry Hire
Applications:
Mining
Quarrying
Road Maintenance
Trenching and Excavation
Demolition
Landscaping
Underwater Applications
Concrete Removal
Foundation Work
Available Model / Size:
Epiroc
| MODEL | CARRIER WEIGHT CLASS* (t) | SERVICE WEIGHT** (kg) | OIL FLOW RATE (l/min) | OPERATING PRESSURE (bar) | MAX. HYDRAULIC INPUT POWER (kW) | IMPACT RATE (bpm) | WORKING TOOL DIAMETER (mm) | SOUND POWER LEVEL GUARANTEED*** (db(A)) | SOUND PRESSURE LEVEL (r=10m|*** (db(A)) |
|---|---|---|---|---|---|---|---|---|---|
| SB 52 | 0.7-1.1 | 55 | 12-27 | 100-150 | 7 | 750-1,700 | 40 | 117 | 89 |
| SB 102 | 1.1-3.0 | 90 | 16-35 | 100-150 | 9 | 750-2,300 | 45 | 115 | 87 |
| SB 152 | 1.9-4.5 | 140 | 25-45 | 100-150 | 11 | 850-1,900 | 50 | 114 | 85 |
| SB 202 | 2.5-6.0 | 200 | 35-65 | 100-150 | 17 | 850-1,800 | 65 | 118 | 90 |
| SB 302 | 4.5-9.0 | 300 | 50-80 | 100-150 | 20 | 600-1,400 | 80 | 119 | 91 |
| SB 452 | 6.5-13.0 | 440 | 55-100 | 100-150 | 25 | 550-1,150 | 95 | 122 | 94 |
| MB 750 | 10-17 | 750 | 80-120 | 140-170 | 34 | 370-840 | 100 | 117 | 88 |
| MB 1000 | 12-21 | 1,000 | 85-130 | 160-180 | 39 | 350-750 | 110 | 119 | 90 |
| MB 1200 | 15-26 | 1,200 | 100-140 | 160-180 | 42 | 340-680 | 120 | 117 | 88 |
| MB 1500 | 17-29 | 1,500 | 120-155 | 160-180 | 46 | 330-680 | 135 | 120 | 91 |
| MB 1650 | 19-32 | 1,650 | 130-170 | 160-180 | 51 | 320-640 | 140 | 121~ | 91~ |
| HB 2000 | 22-38 | 2,000 | 150-190 | 160-180 | 57 | 300-625 | 145 | 120 | 91 |
| HB 2500 | 27-46 | 2,500 | 170-220 | 160-180 | 66 | 280-580 | 155 | 121 | 92 |
| HB 3100 | 32-52 | 3,100 | 210-270 | 160-180 | 81 | 280-560 | 165 | 120 | 91 |
| HB 3600 | 35-63 | 3,600 | 240-300 | 160-180 | 90 | 280-560 | 170 | 123 | 93 |
| HB 4100 | 40-70 | 4,100 | 250-320 | 160-180 | 96 | 280-550 | 180 | 124 | 94 |
| HB 4700 | 45-80 | 4,700 | 260-360 | 160-180 | 108 | 280-540 | 190 | 126 | 97 |
| HB 5800 | 58-100 | 5,800 | 310-390 | 160-180 | 117 | 280-480 | 200 | 121 | 92 |
| HB 7000 | 70-120 | 7,000 | 360-450 | 160-180 | 135 | 280-450 | 210 | 121 | 92 |
Toku
| MODEL | Width (mm) | Height (mm) | Tool Diameter (mm) | Tool Length (mm) | Min. Carrier Range (ton) | Max. Carrier Range (ton) | Min. Impact Rate | Max. Impact Rate (bpm) | Min. Oil Flow (bpm) | Max. Oil Flow (l/min) | Min. Operating Pressure (l/min) | Max. Operating Pressure (MPa) | Hose Size (inch) | Gas Pressure (MPa) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TNB-6M | 350 | 1595 | 75 | 710 | 5.5 | 8 | 600 | 1050 | 40 | 70 | 10 | 16 | 3/4 | 1 |
| TNB-6E | 380 | 1697 | 95 | 800 | 6 | 11 | 550 | 1000 | 45 | 80 | 10 | 16 | 3/4 | 0.8 |
| TNB-7J | 510 | 1878 | 105 | 1050 | 8 | 14 | 450 | 700 | 80 | 120 | 14 | 18 | 3/4 | 1.1 |
| TNB-110 | 490 | 2139 | 115 | 930 | 14 | 20 | 600 | 600 | 100 | 140 | 12 | 17 | 1 | 0.8 |
| TNB-151LU2 | 1230 | 135 | 1230 | 18 | 25 | 430 | 630 | 160 | 200 | 14 | 18 | 1 | 1.1 | |
| TNB-230LU2 | 650 | 2821 | 146 | 1180 | 27 | 40 | 380 | 450 | 180 | 230 | 13 | 18 | 1 | 0.8 |
| TNB-310LU1 | 680 | 3312 | 160 | 1360 | 38 | 50 | 370 | 470 | 240 | 300 | 14 | 18 | 1* 1/4 | 0.8 |
| TNB-40K | 630 | 3524 | 170 | 1500 | 38 | 53 | 290 | 440 | 240 | 300 | 14 | 18 | 1 | 1 |
| TNB-400LU2 | 680 | 3647 | 178 | 1540 | 45 | 70 | 370 | 470 | 280 | 390 | 14 | 18 | 1°1/4 | 0.8 |
